AgustaWestland A109e Power

AgustaWestland A109e Power

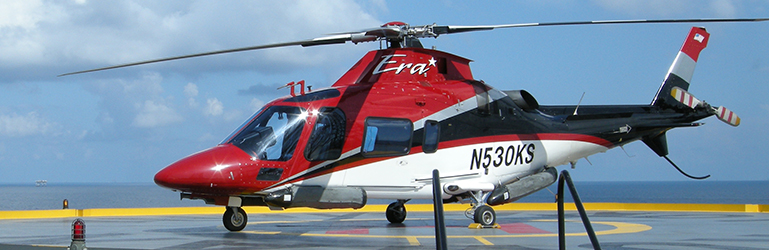

The AgustaWestland A109E Power is a twin-engine, high-speed, high-productivity helicopter well-suited for the demanding offshore mission.  Configured for 7 passengers, the A109E Power is the fastest helicopter in its class and is single-pilot IFR certified. The A109E Power’s reliability is assured by a fully separated fuel system supplying its twin engines, plus a dual hydraulic boost system, dual electrical system and redundant lubrication and cooling systems for the main transmission and engines. An air oil absorber for each wheeled type landing gear leg increases the crashworthiness and shipdeck operational capabilities.

Helicopter Facts

Cruise Airspeed (kts)
136
Basic Operating Weight (lb)
4,817
Max Gross Weight (lb)
6,614
Available Payload (no fuel)
1,797
Max Fuel (Gal)
224
Max Fuel (lb)
1,523
Fuel Burn (Gal/hr)
72
Fuel Burn (lb/hr)
490
Endurance Hours (30 min reserve)
2.6
Range Nautical Miles (30 min reserve)
355

Standard Configuration

Number of Passenger Seats 7
Air Conditioning Equipped
Emergency Floatation System Equipped

Traffic Collision Avoidance System Equipped
GPS Position Tracking (Sky Connect MMU-II) Equipped
High Visibility Blades Equipped
Pulse Lights/LED Strobe Lights Equipped
406 MHz Emergency Locator Beacons Equipped
Underwater Acoustic Pinger Equipped
Radar Altimeter Equipped
Dual GPS Equipped
Stability Augmentation System/Auto Pilot Equipped
Cockpit Voice Recorder (CVR) N/A
Weather Radar Equipped
Health Usage Monitoring System (HUMS) N/A
Flight Data Monitoring (FDM) N/A
Helicopter Emergency Egress Lighting (HEEL) N/A
Automatically Deployable Emergency Locator Transmitter (ADELT) N/A
Enhanced Ground Proximity Warning System (EGPWS) N/A
Automatic Dependent Surveillance Broadcast (ADSB) N/A
